10GBASE-T SFP Copper Transceiver Fiber Optic Transceiver Module 30m

10G BASE-T SFP Copper 30m Transceiver Module

Features

• Supports 10GBase-T using 30m Cat 6a/7 cable
• Supports 5GBase-T using 70m Cat 5e cable
• Supports 2.5GBase-T using 100m Cat 5e cable
• Supports 10/100/1000Base-T using 100m Cat 5e cable
• Low power consumption (2.3W TYP @10Gbps 30m)
• Auto-sense MDI/MDIX
• Compliant with IEEE 802.3az
• Compliant with SFF-8431 and SFF-8432 MSA
• Compliant with RoHS 2.0, Reach, CE, FCC standards
• Operating case temperature: 0~+70°C

Applications

• 10 Gigabit Ethernet

Standards

• IEEE 802.3az
• SFF-8431
• SFF-8432 MSA

Ordering information

Description

• MU1H-0X30 is a small hot-pluggable RJ45 electrical port module, compliant with 10 Giga-bit Ethernet standards and SFP Multi-Source Agreement (MSA) standards, supporting 10G transmission rate,transfer distances up to 30 meters using Cat 6a/7 network cable, it is also backward compatible with 10M/100M/1000M/2.5G/5GBase-T applications. Low power consumption (2.3W TYP @ 10Gbps 30m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Comply with certification requirements such as RoHS 2.0, Reach, CE and FCC.
• The product is based on a standard RJ45 interface, compatible with traditional networks, the Ethernet transfer rates can be increased without changing existing wiring. It is a lowcost alternative to Ethernet upgrades.


General Specifications

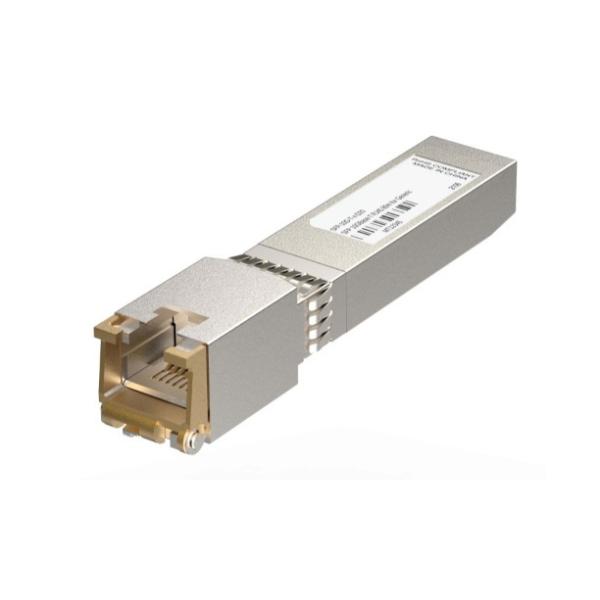

10GBASE-T SFP Copper Transceiver Fiber Optic Transceiver Module 30m Images
